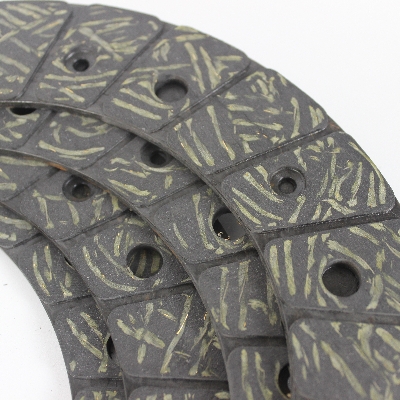

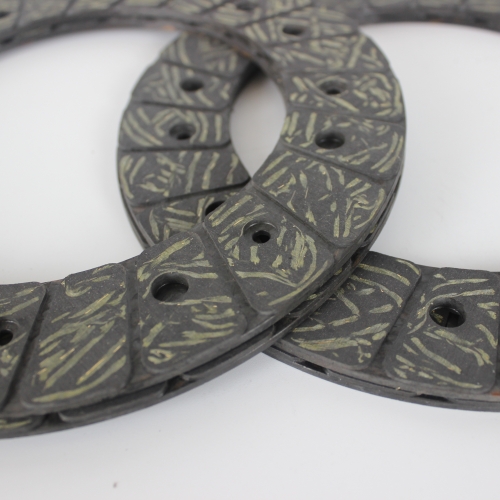

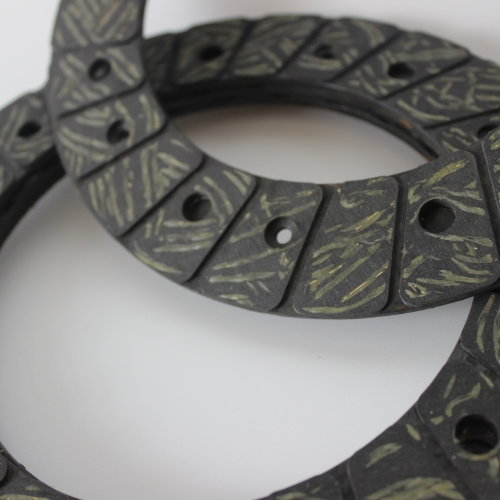

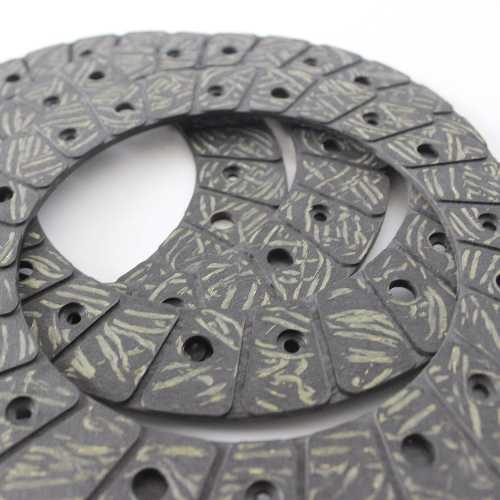

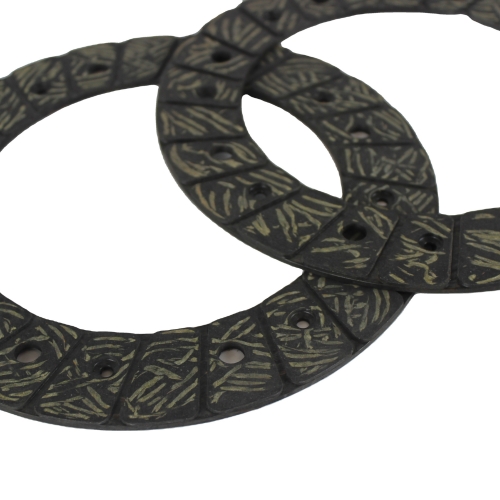

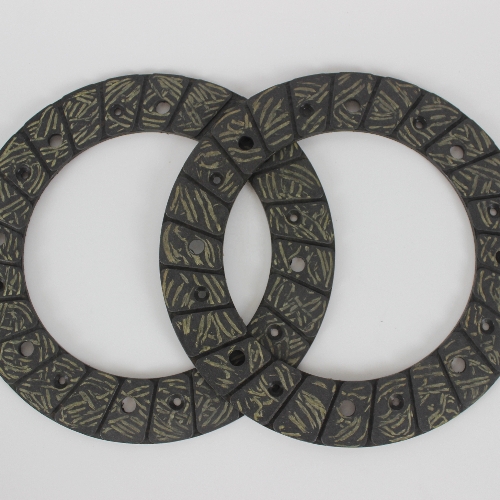

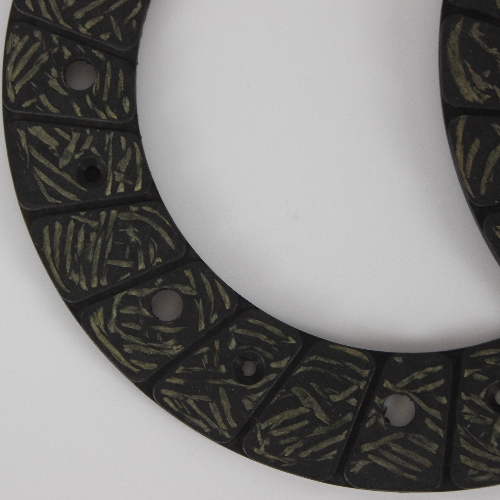

Glass Fiber Clutch Facing LH209A

Clutch plate is a sort of composite fabric with friction as its fundamental feature and structural overall performance requirements. Automotive friction substances are more often than not used to manufacture brake friction plates and seize plates. Since friction substances are usually used in the manufacture of brake and driveline components in automobiles, the merchandise we produce have a sufficiently excessive and secure friction coefficient and top put on resistance.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

The clutch is located in the flywheel housing between the engine and the gearbox. The clutch assembly is fixed on the rear plane of the flywheel with screws. The output shaft of the clutch is the input shaft of the gearbox. While the car is driving, the driver can depress or release the clutch pedal as needed to temporarily separate and gradually connect the engine and the transmission to cut off or transmit the power input from the engine to the transmission. The clutch is a common component in mechanical transmission, which can separate or engage the transmission system at any time.

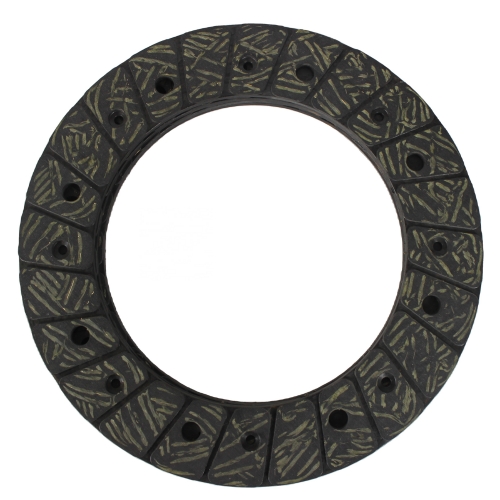

Glass Fiber Clutch Facing LH209A

The Main Performance Index

1.Density:1.95±0.1g/cm²

2.Hardness:HRL40-100

3.Bending strength≥50(N/mm²),Maximum strain≥10(10-3mm/mm).

4.Friction and wear properties meet the demand of below table:

Temperature^。C	100	150	200	250	300	More100
Friction Coefficient(μ)	0.45±0.08	0.45±0.10	0.45±0.11	0.45±0.13	0.45±0.15	0.45±0.10
Wear Rate (ν)10-7cm3/(N·m)	≤0.18	≤0.20	≤0.25	≤0.32	≤0.40	/

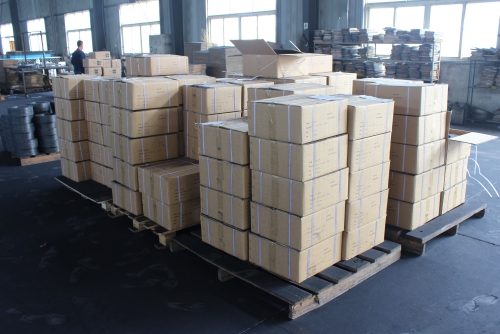

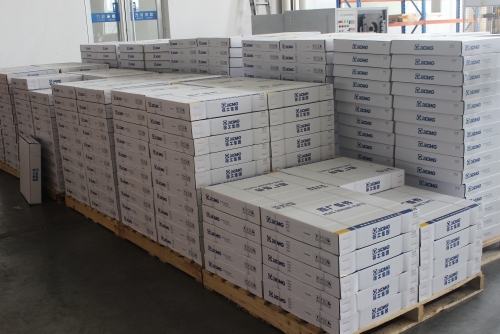

Packaging and shipping

In order to better protect the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
